Easy Integration with Vellum’s API for Workflows
Once you have your Workflow built in Vellum’s UI, we provide an easy way to use it in production. Vellum handles the execution of the Workflow — all you need to provide are the input variables to call the Workflow. Vellum abstracts away the need to store the prompts, semantic search & the business logic tying together these prompts in your code base. Using Workflows in production becomes a matter of minutes, not days.
This help center article covers how to make the integration, and the monitoring options you have once in production.
Workflow Code Snippet Integration

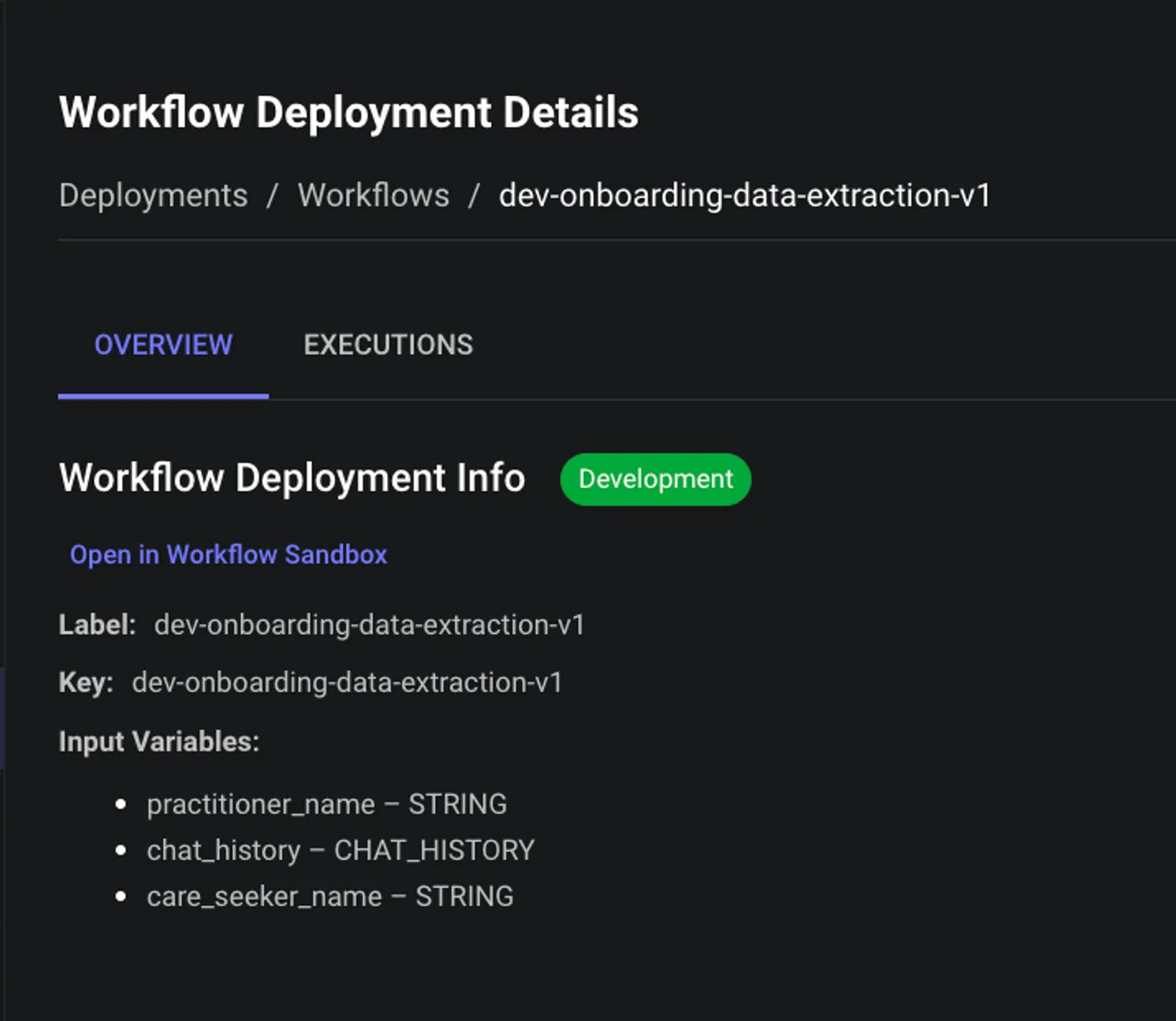

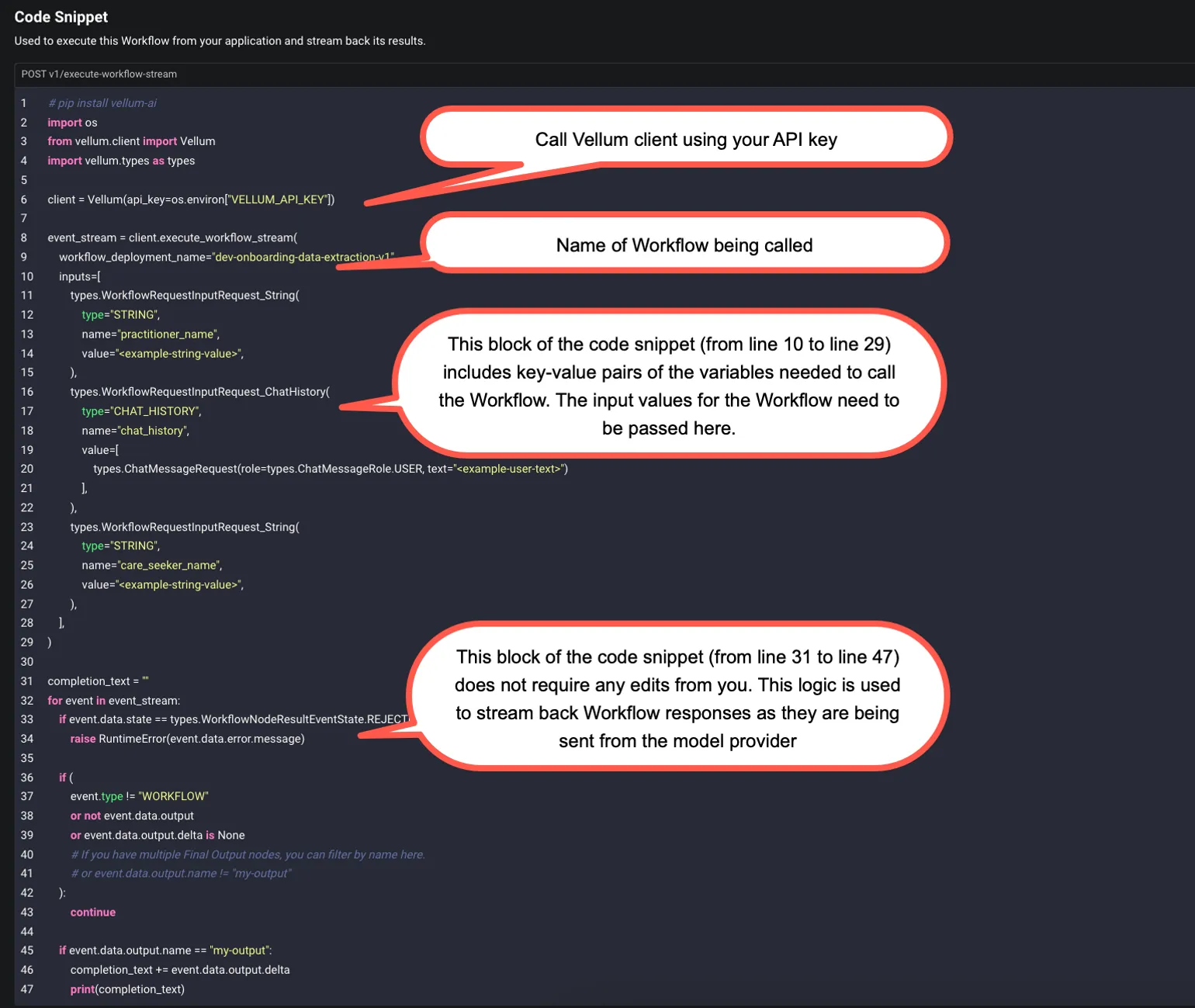

Once you Deploy the Workflow from the UI, you’re taken to a code snippet which you need to use to call this Workflow in production. The adjacent screenshot shows the Workflow Deployment’s name & its input variables
Workflow Executions

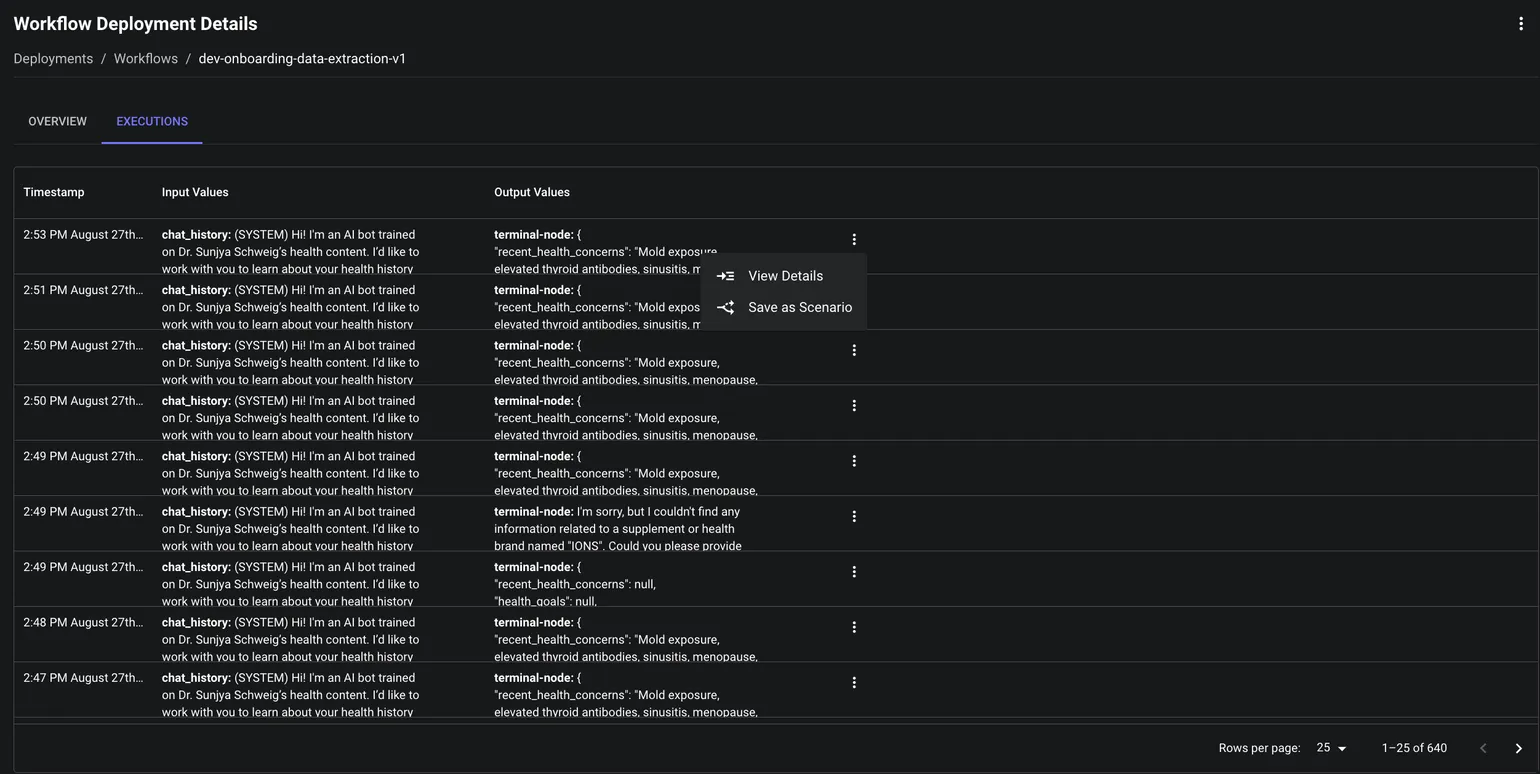

Once you start making requests to the Workflow, all the executions are stored in the Executions tab for monitoring purposes. Any time you find an edge case in production, you can save that specific Execution back as a Scenario for future testing. This is typically used to build out your test bank and debugging unexpected behavior. By running this Scenario in the UI you can see what the responses were at each step and tweak the Workflow logic (prompts, semantic search, business logic tying together the prompts)
Accessing Workflow Execution Details Directly
You can directly access a specific workflow execution details page using just the execution ID. This is particularly useful when you want to cross-link to Vellum executions from your internal tools for debugging purposes.
The URL format is:
This direct linking capability makes it easy to reference specific executions in your internal documentation, issue trackers, or monitoring systems without needing to navigate through the Vellum UI.
Workflow Executions Details
Clicking the View Details button on the Execution brings you to a UI where you can see the inputs, outputs and latency at each step of the Workflow when it was run in production.
Cost Tracking

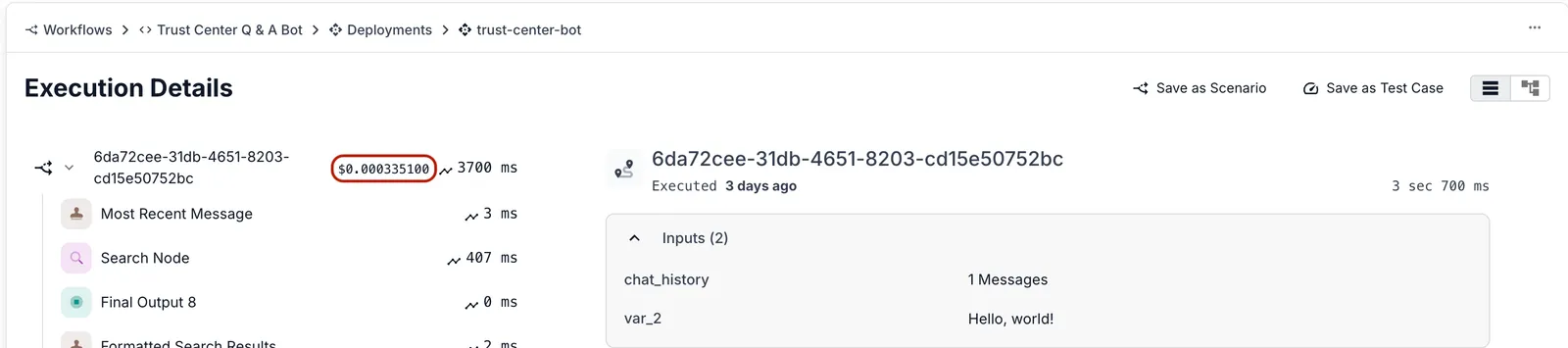

The Execution Details page also displays the aggregated cost for the entire Workflow Execution, giving you visibility into the total expense of running your Workflow. This cost breakdown includes all LLM operations performed during the execution, including those in nested Subworkflows and parallel operations.
This cost tracking feature helps you monitor and optimize your LLM usage expenses. For more information on cost tracking and optimization strategies, see our Workflow Execution Cost Tracking documentation.
