Code Execution Node

The Code Execution Node empowers you to include custom logic defined directly in the workflow. You can even import custom public packages within the node’s logic.

Code Structure Requirements

Your code must include a main() function that serves as the entry point. The function parameters must match the input variable names defined in your node.

Basic Example

1
def main(input_text, user_data):
2
    # Your custom logic here
3
    processed_text = input_text.upper()
4
    result = {
5
        "processed": processed_text,
6
        "user_id": user_data.get("id", "unknown")
7
    }
8
    return result

If your node has inputs named input_text and user_data, your main() function must have parameters with exactly those names.

Common Error

If you write code without a main() function:

1
# ❌ This will cause an error
2
text = "Hello World"
3
result = text.upper()

You’ll see this error:

NameError: name 'main' is not defined. Did you mean: 'min'?

Correct Structure

1
# ✅ This is the correct structure
2
def main(input_text):
3
    result = input_text.upper()
4
    return result

Code Execution Node Interface

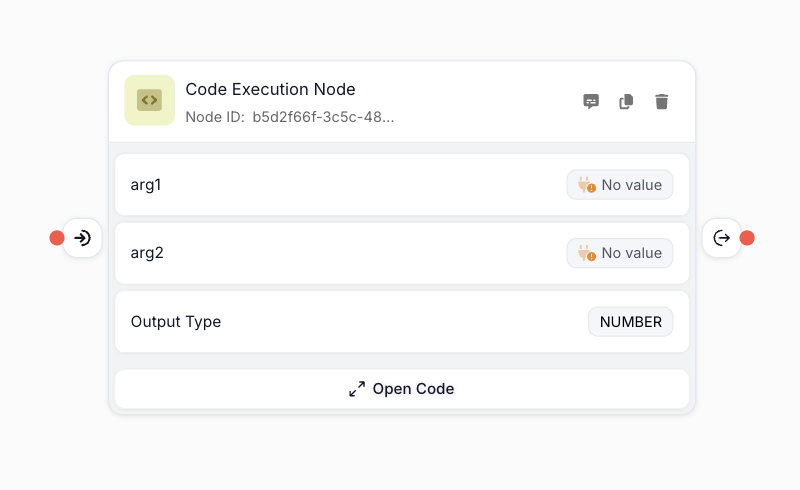

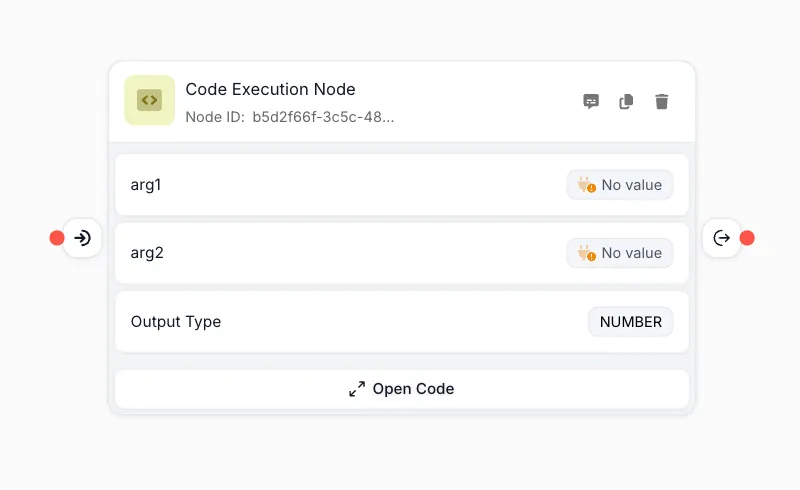

The Code Execution Node provides a simple interface for configuring your custom code:

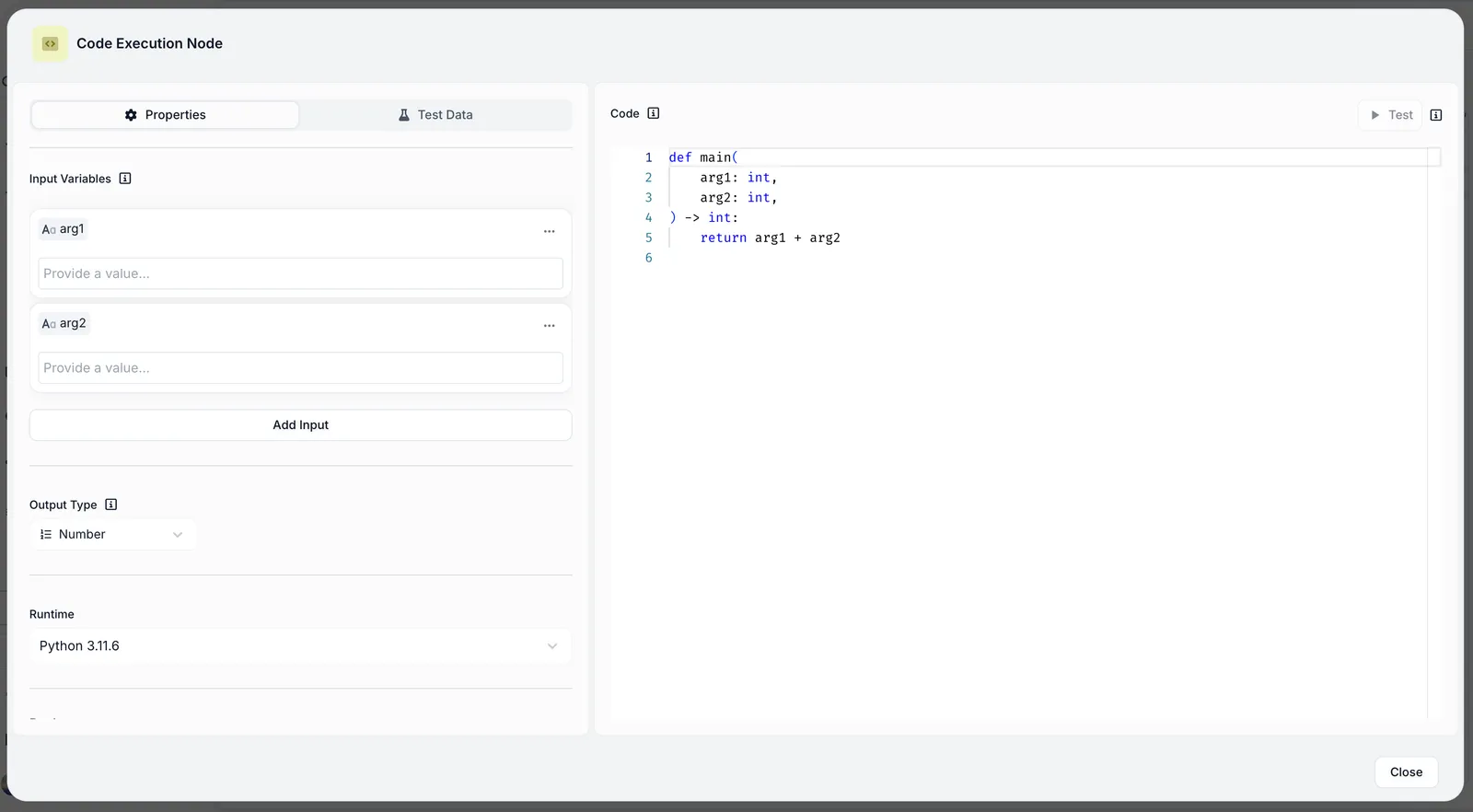

When you open the Code Execution Node, you’ll see a detailed code editor interface:

Supported Languages

We support the following languages:

• Python
• TypeScript

Input Parameter Matching

The main() function parameters must exactly match your node’s input names:

• If your node has an input called user_message, your function parameter must be user_message
• If your node has an input called chat_history, your function parameter must be chat_history
• Parameter names are case-sensitive and must match exactly

Advanced Examples

Working with Chat History

1
def main(chat_history, user_query):
2
    # Process chat history
3
    message_count = len(chat_history)
4
    last_message = chat_history[-1] if chat_history else None
5

6
    response = {
7
        "query": user_query,
8
        "context": f"Found {message_count} previous messages",
9
        "last_message": last_message
10
    }
11
    return response

Using External Packages

1
import json
2
import datetime
3
4
def main(data_input, timestamp):
5
    # Process JSON data with timestamp
6
    parsed_data = json.loads(data_input) if isinstance(data_input, str) else data_input
7

8
    result = {
9
        "processed_at": datetime.datetime.now().isoformat(),
10
        "input_timestamp": timestamp,
11
        "data": parsed_data
12
    }
13
    return result

Troubleshooting

”NameError: name ‘main’ is not defined”

This error occurs when your code doesn’t include a main() function. Always ensure your code has a main() function as the entry point.

Parameter Name Mismatches

If your function parameters don’t match your node’s input names exactly, you may encounter unexpected behavior or errors. Double-check that parameter names match your node inputs precisely.
